Configuration Navigation

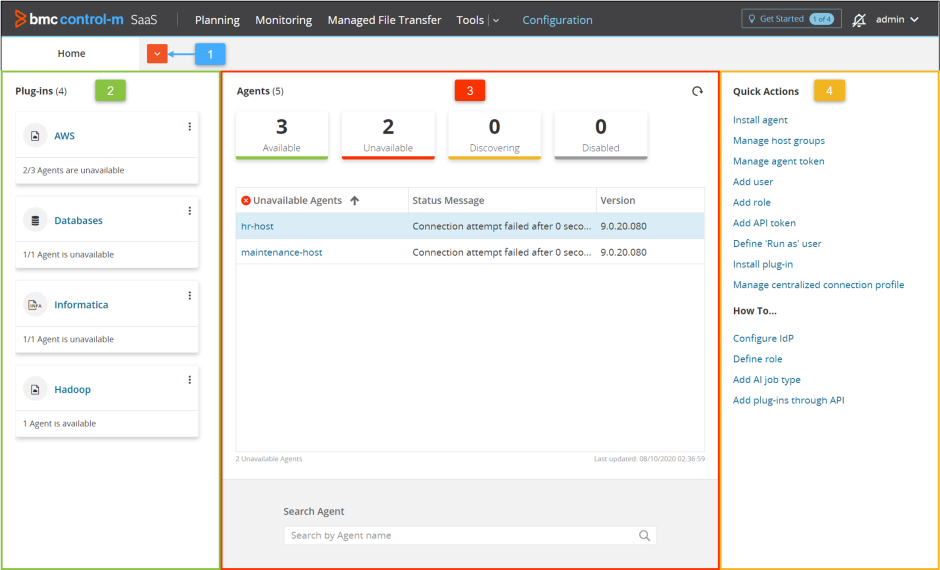

The following image shows the Configuration domain interface:

The following table describes the different panes in the Configuration domain interface:

Key	Description
1	The drop-down list enables you to access the following interfaces: Agents: For more information, see Agents. Plug-ins: For more information, see Plug-ins. Centralized Connection Profile: For more information, see Creating a Centralized Connection Profile. Users: For more information, see Adding an Internal User. Roles: For more information, see Adding a Role. API Token: For more information, see Creating an API Token. System Settings: For more information, see Defining System Settings.
2	Lists the Plug-ins in your environment. A plug-in tile shows the following: The plug-in type The number of Agents that the plug-in has been installed on access to the Plug-ins and Centralized Connection Profiles pages, each filtered by the plug-in
3	In theAgentspane you can view the following: Agents: Shows the status of KPIs of the following: Available Agents Unavailable Agents Discovered Agents Disabled Agents You can view and search the following: Unavailable Agents: View a list of all the unavailable Agents in your environment Search Agent: Enables you to search for Agents
4	In the right pane you can access and link to the following: Quick Actions: Provides access to pages in the Configuration domain based on the actions you to select. How To...: Provides links to popular topics in Control-M Documentation.

Agents Page

The following image shows the functionality tabs in the Agents interface:

The following table describes the functionality of the tabs in the Agents interface:

Key	Name	Description
1	Refresh	Enables you to refresh the list of Agents.
2	Search field	Enables you to filter the list of Agents by plug-in type.
3	Search field	Enables you to search for Agents by name.
4	Install Agent	Enables you to open the Download & Install the Agent pane for Agent installations, as described in Installing an Agent.
5	Ping	Enables you to test the connectivity of the Agent.
6	Recycle	Enables you to shut down and start up the Agent.
7	Disable	Enables you to disable all actions for that Agent.
8	Delete	Enables you to delete the Agent from your environment. To fully remove the Agent, you need to uninstall it.
9	Export	Enables you to export the list of Agents in a CSV file.
10	"Run as" User Management	Enables you to add a Run as user in Control-M, which is used to log into the host, as described in Adding a Run as User .
11	Host Group Management	Enables you to open the Host Group Management pane, as described in Host Groups.
12	Agent Token Management	Enables you to open the Agent Token Management pane.
13	Agent	Enables you to view an Agent in your environment with status and other information.
